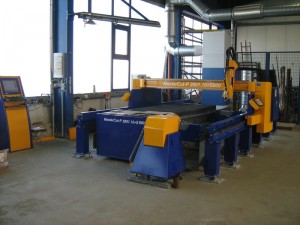

Mastercut is a versatile CNC cutting machine which can be applied throughout the industry reaching from small workshops to big factories. The application range of the entry version with rails in X direction dedicated to fully automated oxyfuel cutting or cutting with conventional plasma can be enhanced to a variety of high precision plasma cutting applications including pipe, profile or elbow cutting and marking.
TECHNICAL PARAMETERS
| Working length | 3000 – 30000 mm |
| Working width | 1500 – 4000 mm |
| Max number of tool stations | 4 (6G) |
| Max thickness of material cut by plasma | According to a plasma source |
| Max thickness of material cut by oxyfuel | 150 mm (optionally 200 mm ) |
| Positioning speed | Up to 30 m/min (depends on version) |
| Positioning accuracy | ± 0,12 (depends on version) according to DIN 28 206 |
